The KTM RC 390 is a high-performance sports bike that is designed to deliver an exhilarating riding experience. It is powered by a 373.3cc, single-cylinder, liquid-cooled engine that generates a maximum power of 43.5 hp and a peak torque of 36 Nm. This engine is paired with a 6-speed gearbox and is capable of propelling the bike to a top speed of 179 kmph.
The bike's chassis is made of steel trellis, which gives it a sturdy and robust structure. The front suspension is a 43mm upside-down fork, while the rear suspension is a monoshock. Both the front and rear brakes are disc brakes, and the bike comes equipped with dual-channel ABS for enhanced safety.
The KTM RC 390 also features a fully digital instrument cluster that displays all the essential information, including speed, RPM, fuel level, and gear position. The bike also comes with a slipper clutch, which provides smoother downshifts and prevents wheel hopping during aggressive braking.
Overall, the KTM RC 390 is a high-performance sports bike that is designed to deliver an adrenaline-fueled riding experience. With its powerful engine, sturdy chassis, and advanced features, this bike is ideal for riders who are looking for a thrilling and dynamic riding experience.
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Cooling System
Liquid cooling system, continuous circulation of cooling liquid with water pump
Maximum Power
44 hp
Transmission
6 speed, claw shifted
Electricals
Battery
12V/6Ah
Brakes
Front Brake
300 mm Disc brake with four pot brake caliper
Rear Brake
230 mm Disc brake with one-pot brake caliper, floating brake discs
Chassis and Suspension
Frame
Tubular space frame made from steel, powder -coated
Front Suspension
125 mm
Rear Suspension
150 mm
Tyres
Wheels / Rim
17 inch cast light alloy wheels
Dimensions
Height
820mm
Wheelbase
1340 mm
Weight
147kg
Ground Clearance
178.5 mm
Fuel Tank Capacity
9.5 litres
Reserve Tank Capacity
1.5 litres
First Impression Review

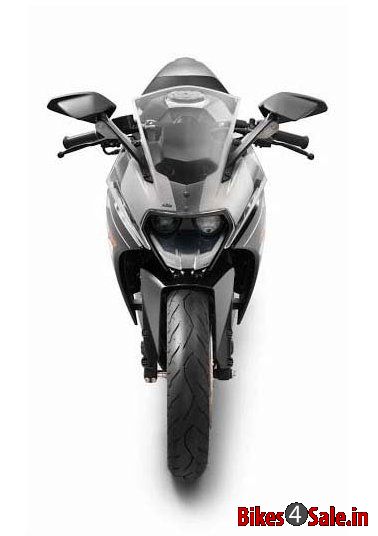

KTM RC 390 is a fully fared track-based sports bike, it is the sibling of the naked motorcycle Duke 390. The twin headlight opens, integrated turning indicator blinkers, thin tail and refreshed black-orange and white paint scheme makes the new RC 390 a stellar and beautiful mean machine. The RC 390 showcase excellent dynamics of riding and handling with a pure rush of adrenaline with every throttle.

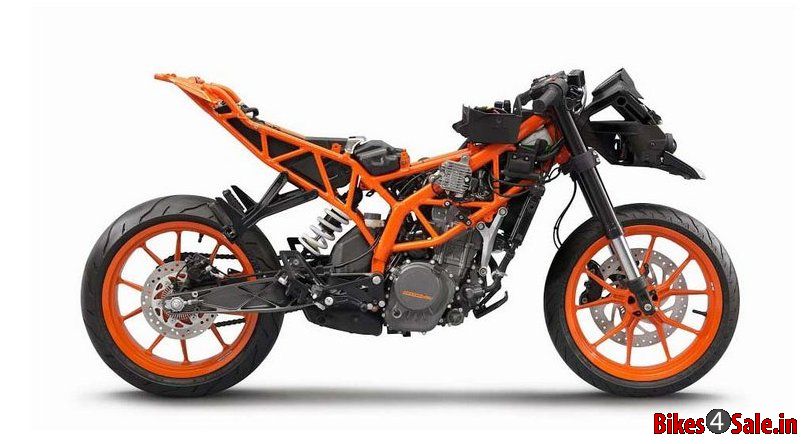

A steel trellis frame that has been orange painted and modified to make a supersport ergonomics and powerful riding dynamics are used in the RC 390. The RC 390 has a refreshed digital LCD display that shows engaged gear, fuel gauge and service reminder information.
The RC 390 comes with a 373.20 cc engine Single cylinder 4 stroke water cooled engine that produces a maximum power of the maximum power of 44.00 bhp @ 9000 rpm and a maximum torque of 36 Nm @ 7000 rpm. The engine is mated to a 6-speed gearbox and comes with modern technologies like ride by wire to increase engine performance and reduce incomplete combustion inside the engine.
The front brakes of the RC 390 come with 300 mm Disc brake with a four-pot brake caliper while the rear brakes come with 230 mm disc brake with one-pot brake caliper. The suspension duties of the RC 390 are performed with WP suspension which does a commendable job at making the RC 390 very aggressive and yet rider friendly motorcycle on track and roads. The new RC 390 has a raised ground clearance of 178.5 mm and comes at a very light weight of Weight 147 kg.
