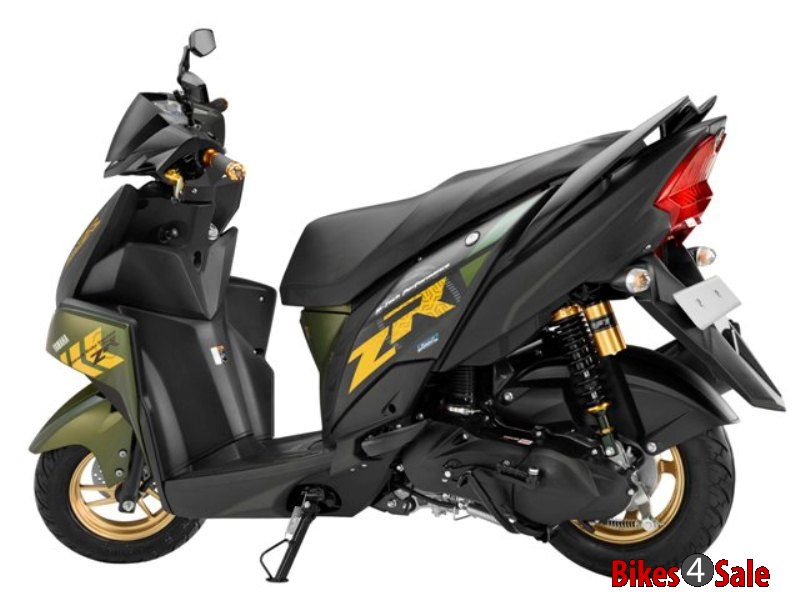

Yamaha Cygnus Ray ZR

Complete details of Cygnus Ray ZR Scooter

Launched in India in April 2016. Cygnus Ray ZR is not in production now.

Cygnus Ray ZR is one of the most stylish looking scooter, available in India. It is based on the first generation Ray, which was also the first scooter from the Japanese brand to introduce in India. The Cygnus Ray ZR, also known by just Ray ZR is the third generation of Ray. This model was launched in the year 2016 with some stylish outfits.

The new Ray ZR is equipped with many innovative features and some stylish cosmetic outfits. This new design structure has been inspired from the scooter Ego Avantiz available in the Malaysian market. The Cygnus Ray ZR gets front disc brakes with alloy wheels, 21-litre large underseat storage space, large front pockets for utility space, gorgeous instrument console with 3-dimensional appearance, key shutter lock, two-level adjustable seats, movable front fender and the deeply sculpted front mask. These features are unique to the Cygnus Ray ZR and this separates it from other scooters.

Ray ZR gets a powerful 113cc, air-cooled, 4-stroke, SOHC engine capable enough to deliver a maximum power of 7.2 Ps @ 7500 rpm and peak torque of 8.1 Nm @ 5000 rpm. It features both kick and self-start mechanism to bring the engine to life. The Engine is mated to V-belt automatic transmission for smooth and seamless power transfer. The suspension system of this scooter consists of a telescopic fork at the front and unit swing arm suspension at the rear.

Rate Yamaha Cygnus Ray ZR:
3.8/5 (34 votes)
Yamaha Cygnus Ray ZR Price Rs. 56,098 [Ex-showroom, Chandigarh]

Yamaha has stopped the production of its scooter Cygnus Ray ZR and hence the given price is not relevant. If you want to check the price of second hand Cygnus Ray ZR, try our Bike Valuation Tool.

The given price can change depending on the colour and other features like alloy wheels, disc brakes, accessories etc.

State, City Ex Showroom Price On Road Price
Chandigarh Rs. 56,098 --
Tripura, Agartala Rs. 57,200 --
Gujarat, Ahmedabad Rs. 56,098 --
Mizoram, Aizawl Rs. 57,200 --
Rajasthan, Alwar Rs. 56,098 --
Andaman Nicobar, Andaman Rs. 57,200 --
Karnataka, Bangalore Rs. 55,949 --
Madhya Pradesh, Bhopal Rs. 56,098 --
Orissa, Bhubaneshwar Rs. 57,200 --
Chhattisgarh, Bilaspur Rs. 57,200 --
View price in other cities
Features
-Blue Core Engine
-BS24 carburetor with Throttle Position Sensor
-Front Disc Brakes
-Alloy Wheels
- 21 litre Underseat storage space
-Key Shutter Locking System
-Two Level Adjustable Seats
-Deeply Sculpted Front Mask
Colours

Matt Green, Fizz White, Maverick Blue and Rooster Red

Overall Mileage40 km per litre
Technical Specifications
Vehicle TypeScooter
FuelPetrol
Engine Displacement113.00 cc
Engine Detailsair-cooled 4-stroke, SOHC, 2-valve
Engine StartingElectric Push Start and Kick Start
Bore x Stroke50mm x 57.8mm
Engine LubricationForce-feed Lubrication , wet sump
ClutchDry, Centrifugal
Fuel SystemCarburetor
IgnitionC.D.I (Capacitor Discharge Ignition)
Cooling SystemAir Cooling
Maximum Power7 Bhp @ 7500 rpm
Maximum Torque8.1 Nm @ 5000 rpm
TransmissionContinuous Variable Transmission
Electricals
Battery12V,4.0Ah(10HR)
Head LampHalogen Type
Brakes
Front BrakeDisc
Rear BrakeDrum
Chassis and Suspension
FrameUnderbone Type
Front SuspensionTelescopic
Rear SuspensionTelescopic
Tyres
Front Tyre90/100-10
Rear Tyre90/100-10
Dimensions
Length1820 mm
Width700 mm
Height1115 mm
Wheelbase1270 mm
Weight103 kg
Ground Clearance130 mm
Fuel Tank Capacity5.2 litres
