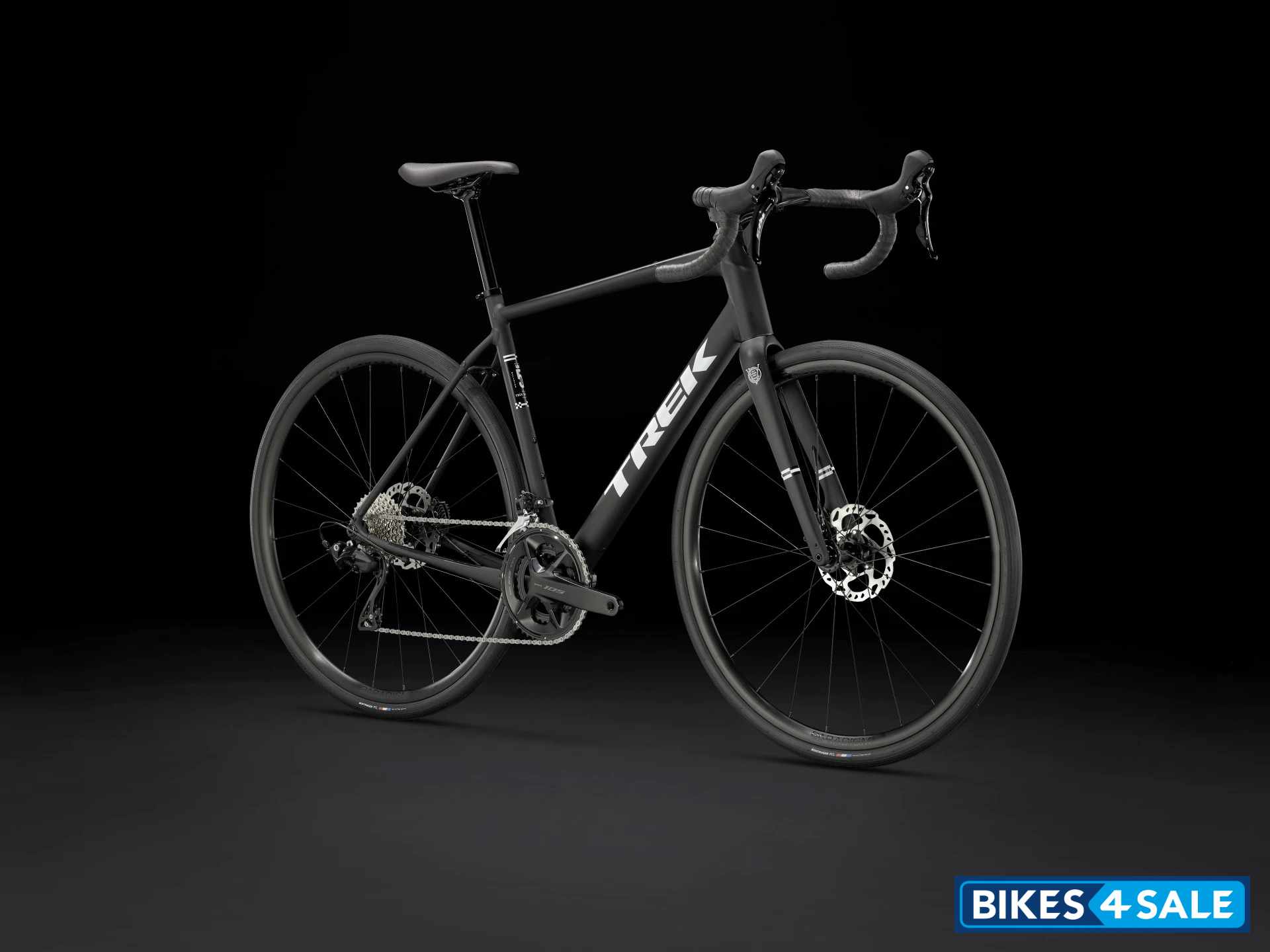

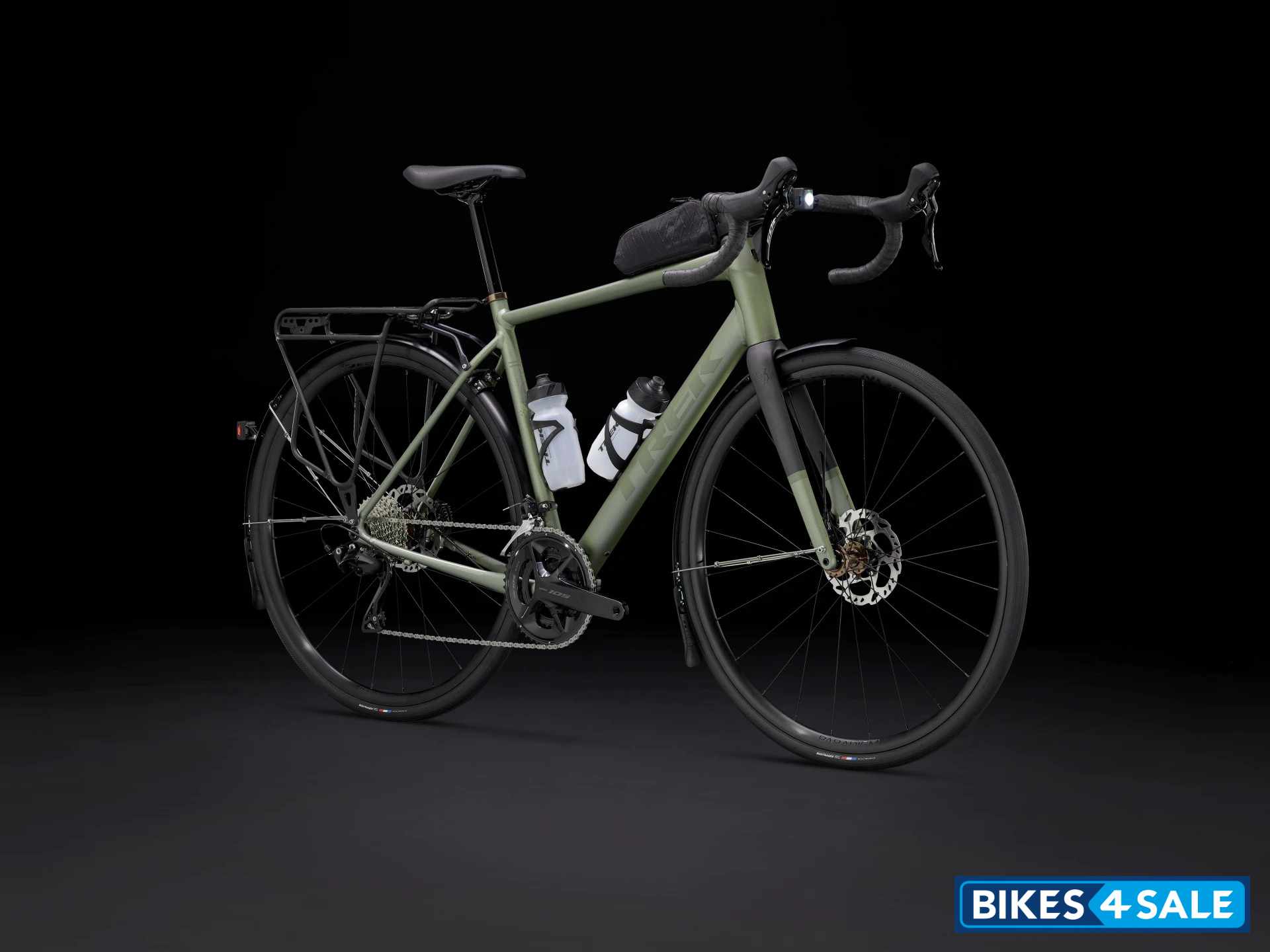

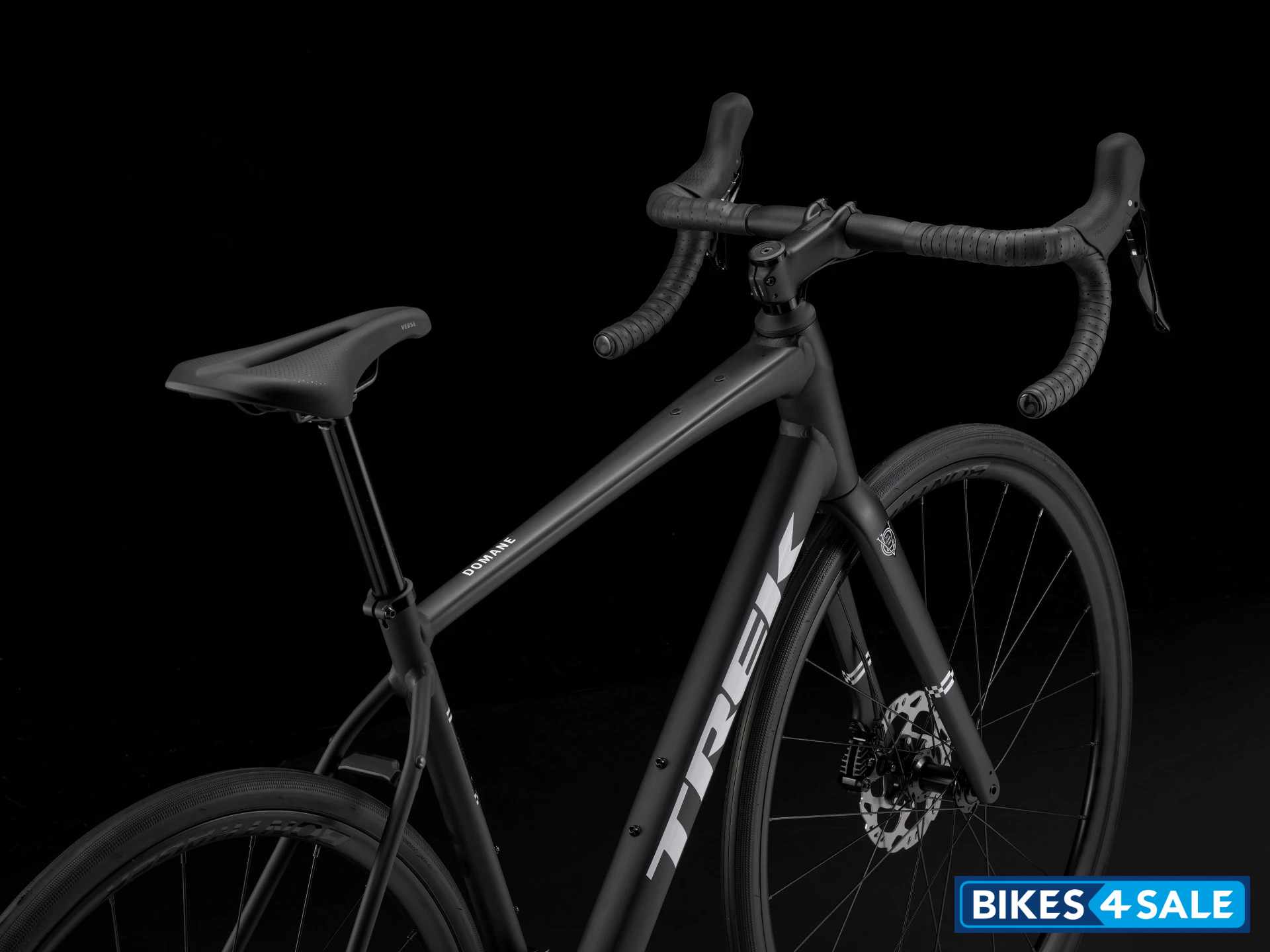

Trek Domane AL 5 Gen 4 Bicycle price, colours, pictures, specs and reviews

The Trek Domane AL 5 Gen 4 bicycle excels with its Shimano 105 R7120 12-speed shifters, enabling riders to effortlessly navigate diverse landscapes. Enhanced by 14 g stainless steel black spokes, it promises resilience and consistent performance over prolonged rides. Complemented by the Shimano SLX M7100 12-speed chain, this bike ensures seamless power transfer, catering to the demands of avid cyclists seeking dependable equipment.

Rate Trek Domane AL 5 Gen 4:

4.0/5 (2 votes)

Write a Review

Trek Domane AL 5 Gen 4 Price

Rs. 1,86,899

Picture Gallery

Colours

Matte Trek Black
Lichen Green

Technical Specifications

Vehicle Type	Bicycle
Stem	Size: 44 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length Size: 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length Size: 61 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
Handlebar	Size: 44, 49 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 38 cm width Size: 52 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 40 cm width Size: 54, 56 Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, internal Di2 routing, 93 mm reach, 123 mm drop, 42 cm width Size: 58, 61 Bontrager Elite IsoZone VR-CF, alloy, 31.8 mm, internal Di2 routing, 93 mm reach, 123 mm drop, 44 cm width
Fork	Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Seatpost	Size: 44, 49 Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length Size: 52, 54, 56, 58, 61 Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
Crankset	Size: 44 Shimano 105 R7100, 50/34, 165 mm length Size: 49, 52 Shimano 105 R7100, 50/34, 170 mm length Size: 54, 56 Shimano 105 R7100, 50/34, 172.5 mm length Size: 58, 61 Shimano 105 R7100, 50/34, 175 mm length
Chain	Shimano SLX M7100, 12-speed
Shifters	Shimano 105 R7120, 12-speed
Saddle	Verse Short, steel rails, 145 mm width
Derailleur : Front	Shimano 105 R7100, 31.8 mm clamp, down swing
Derailleur : Rear	Shimano 105 R7100, 36T max cog
Hub : Front	Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Hub : Rear	Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Spoke	14 g stainless steel, black
Cassette	Shimano 105 7101, 11-34, 12-speed
Chainrings	Max. chainring size - 1x: 50T, 2x: 50/34
Bottom Bracket	Size: 44, 49, 52, 54, 56, 58, 61 Shimano RS501 BSA Size: 44, 49, 52, 54, 56, 58 Prowheel PW-BB73+

Brakes

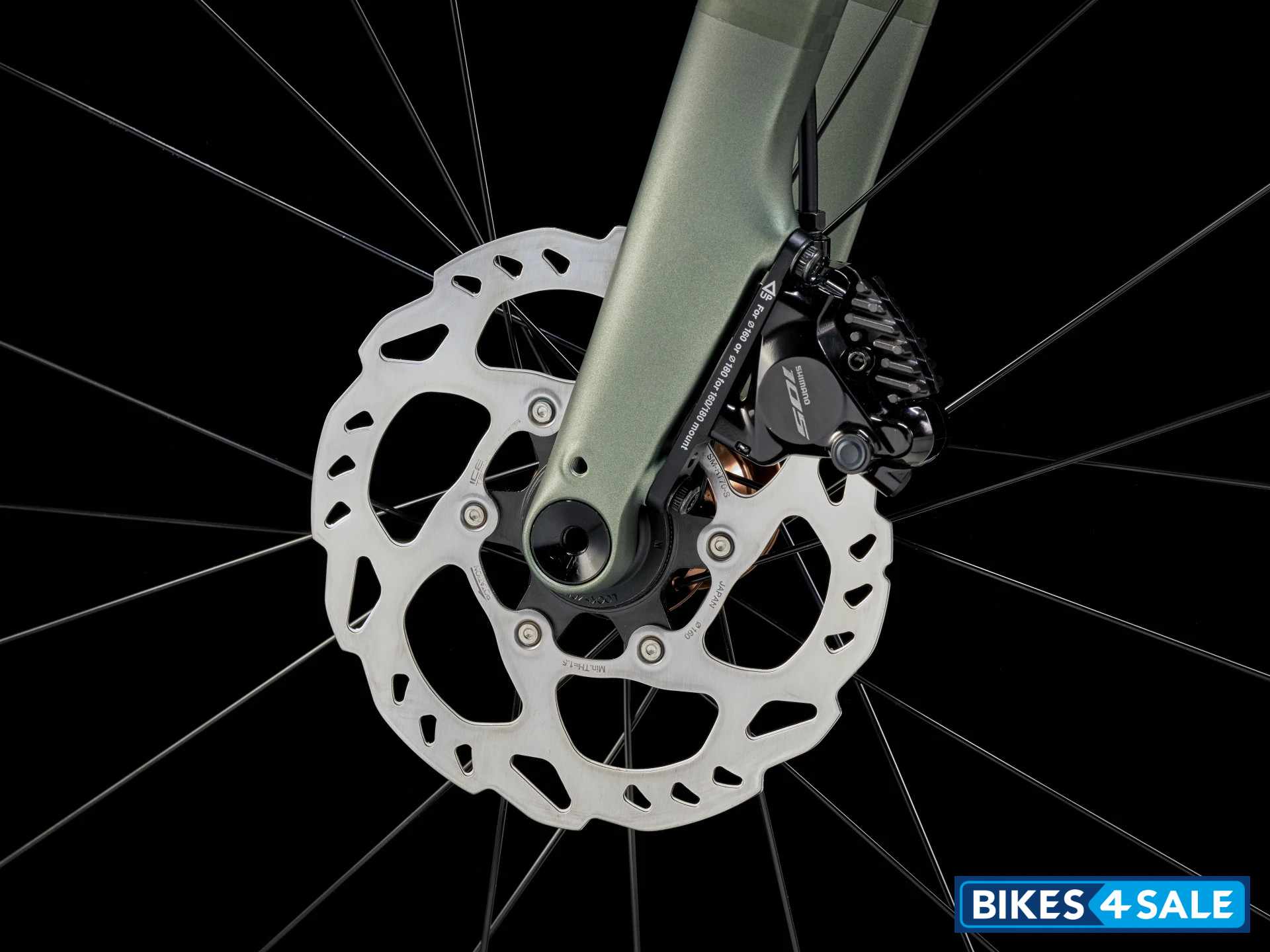

Front Brake	Shimano 105 hydraulic disc
Rear Brake	Shimano 105 hydraulic disc

Chassis and Suspension
Frame	100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12 mm thru axle

Tyres
Wheels / Rim	Rim - Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Front Tyre	Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm Max tyre size - 38 mm without mudguards, 35 mm with mudguards
Rear Tyre	Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm Max tyre size - 38 mm without mudguards, 35 mm with mudguards

Additional Details
Skewer front - Bontrager Switch chamfered thru axle, removable lever Skewer rear - Bontrager Switch chamfered thru axle, removable lever Brake rotor - Shimano RT70, CentreLock, 160 mm
