Trek Checkpoint SL 5 Bicycle price, colours, pictures, specs and reviews

Price, Colours and Features of Checkpoint SL 5

The Trek Checkpoint SL 5 excels with its Shimano SLX M7100 12-speed chain, facilitating effortless gear transitions. Its componentry ensures optimal performance, making it a standout option for traversing diverse landscapes.

Rate Trek Checkpoint SL 5:

3.7/5 (3 votes)

Write a Review

Trek Checkpoint SL 5 Price

Rs. 2,94,499

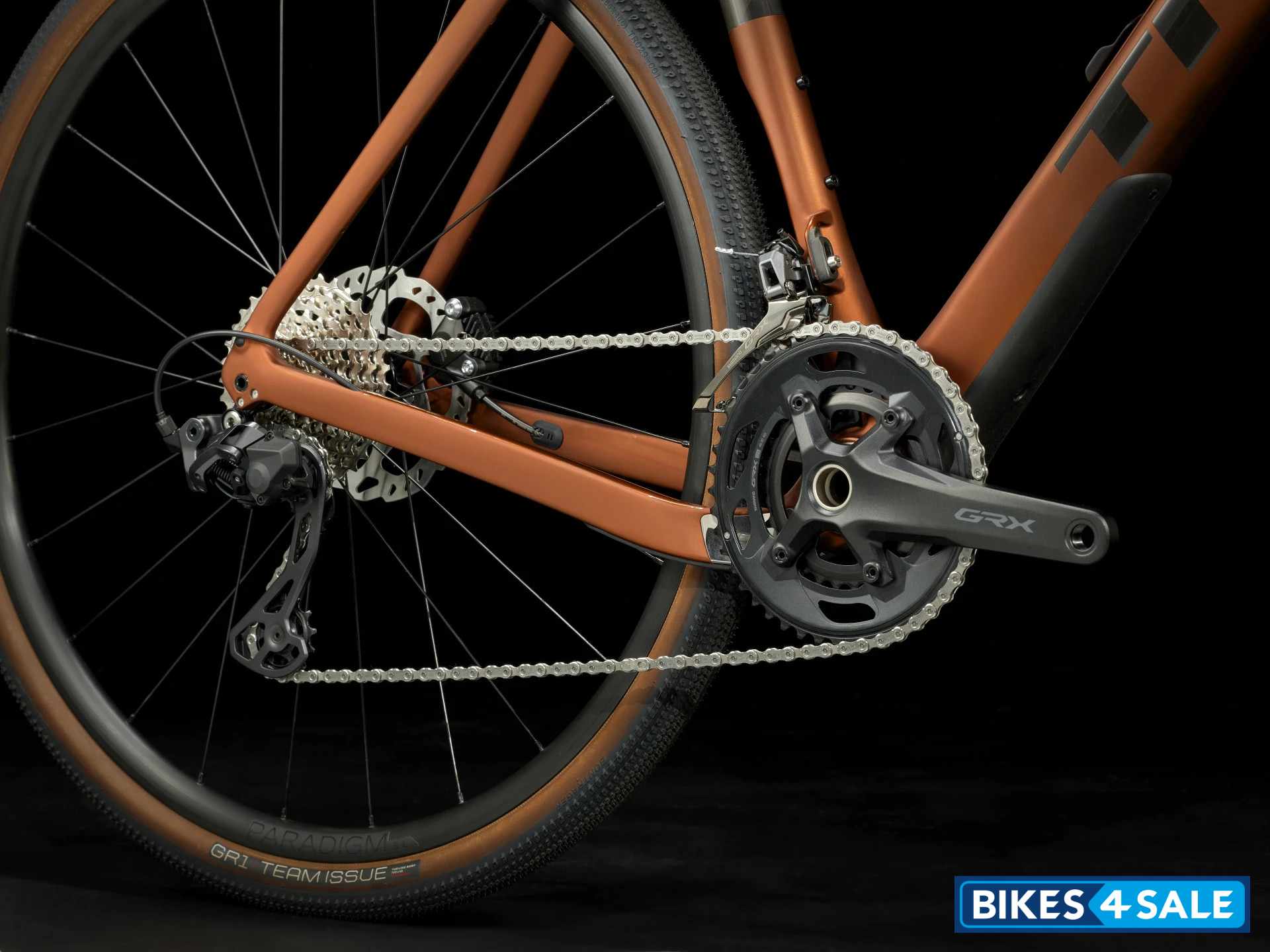

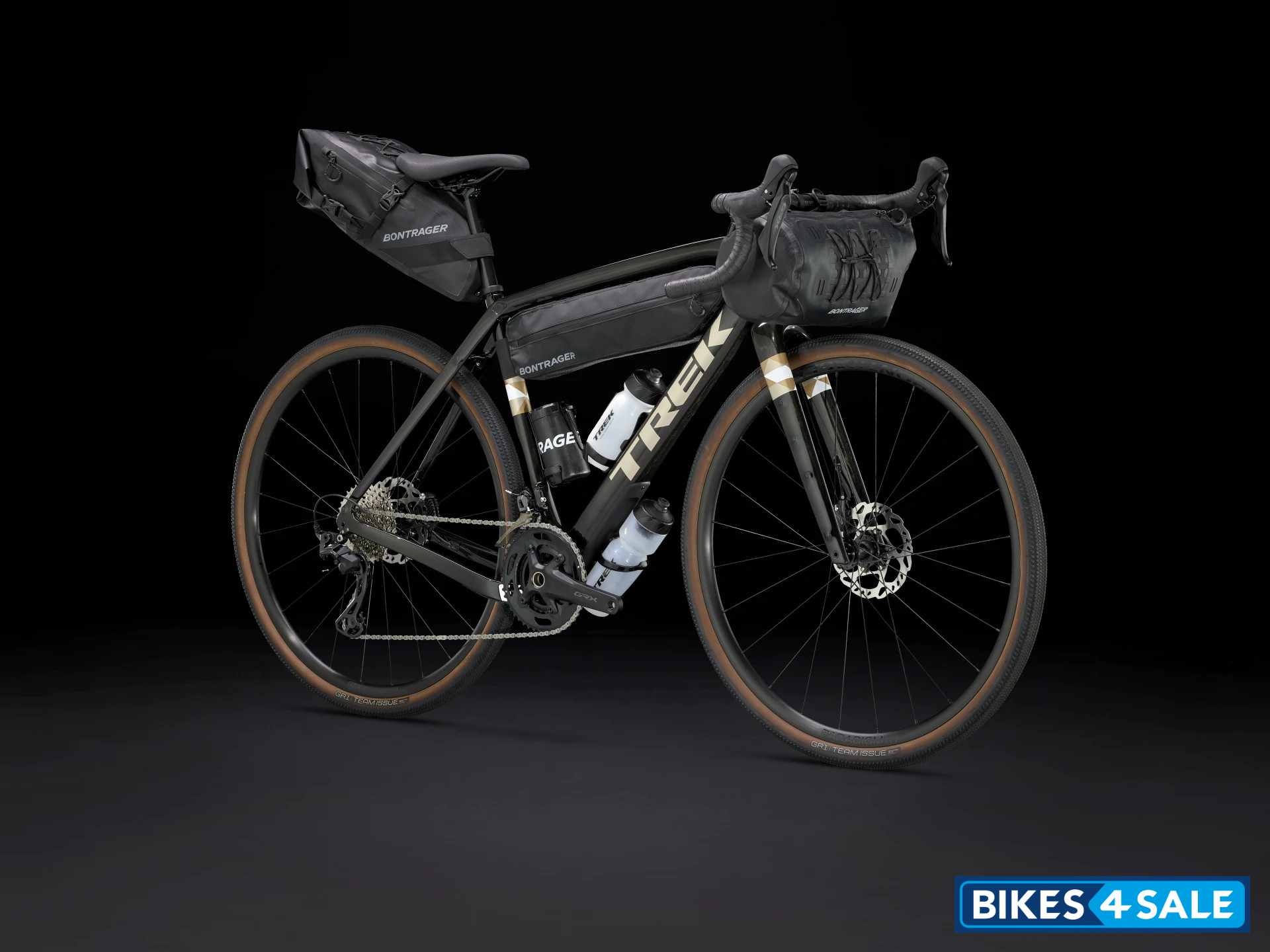

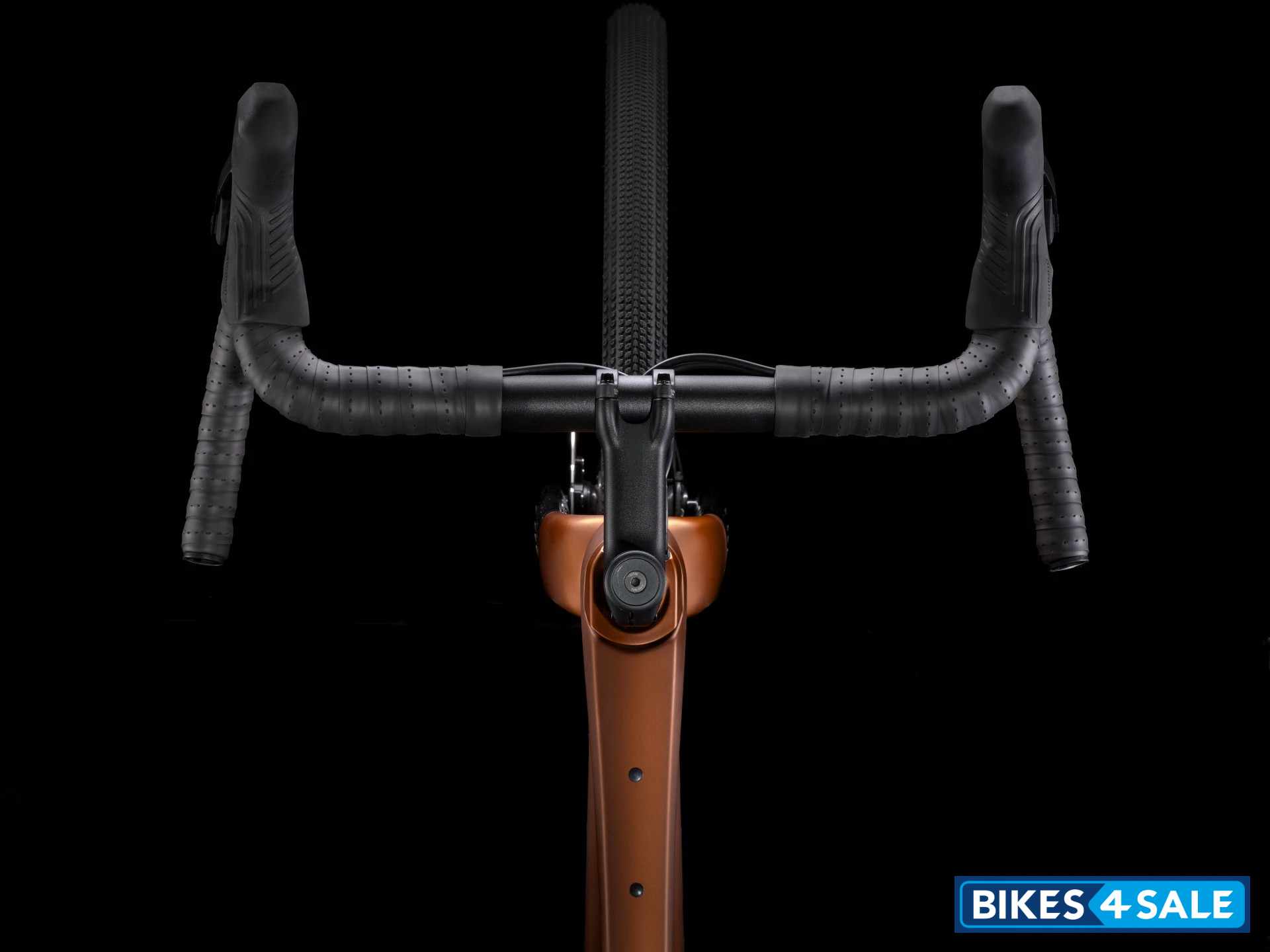

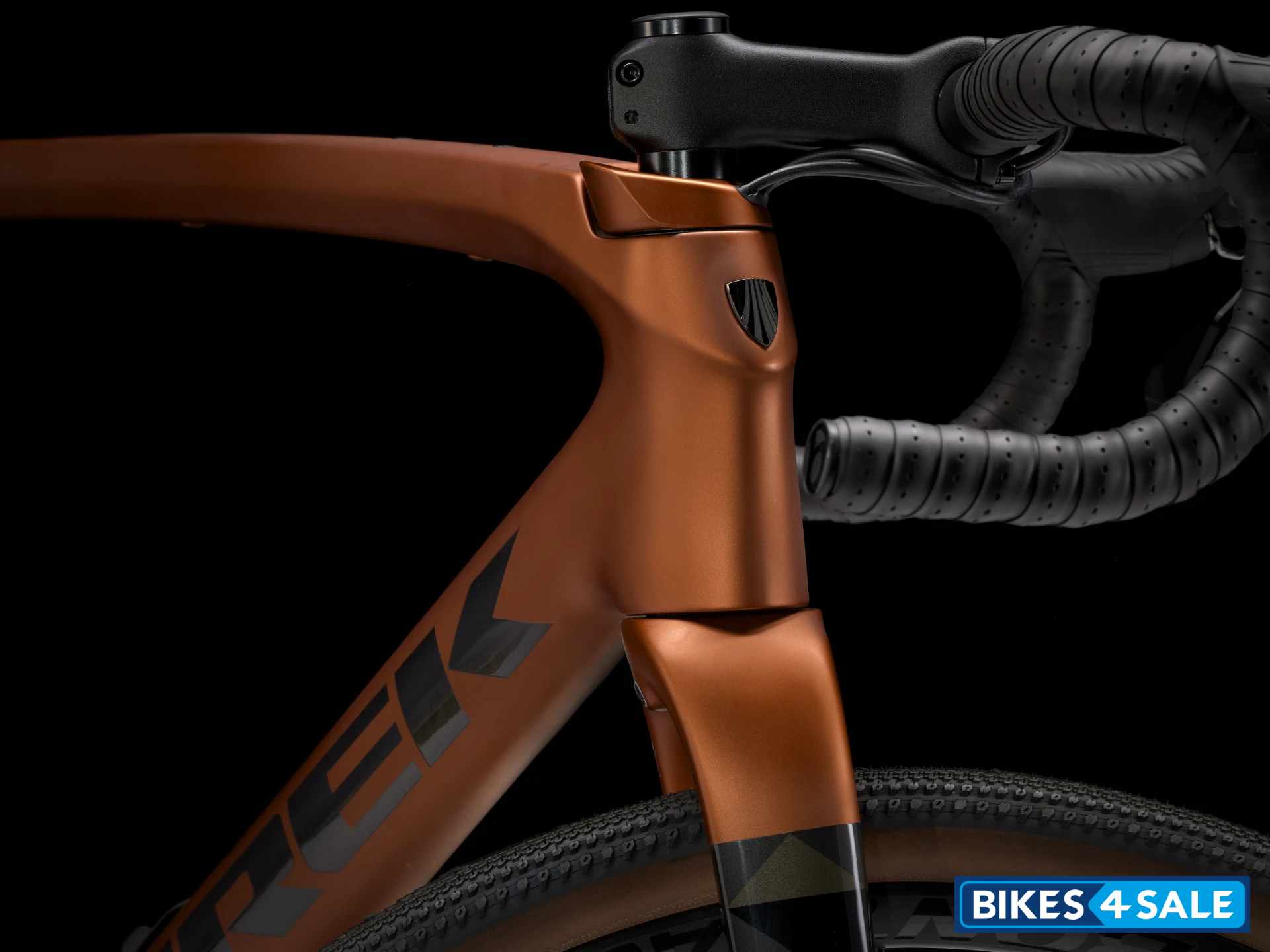

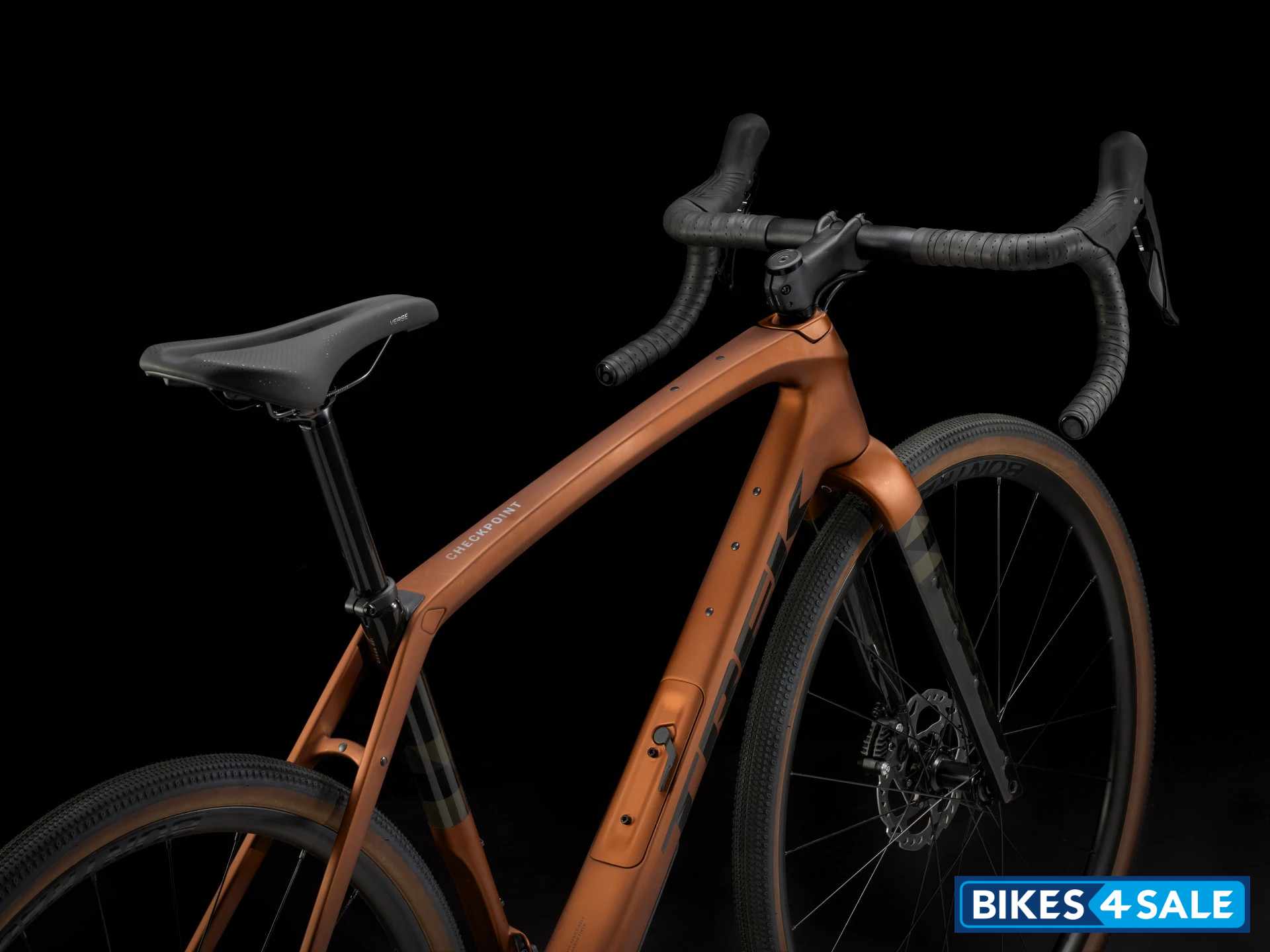

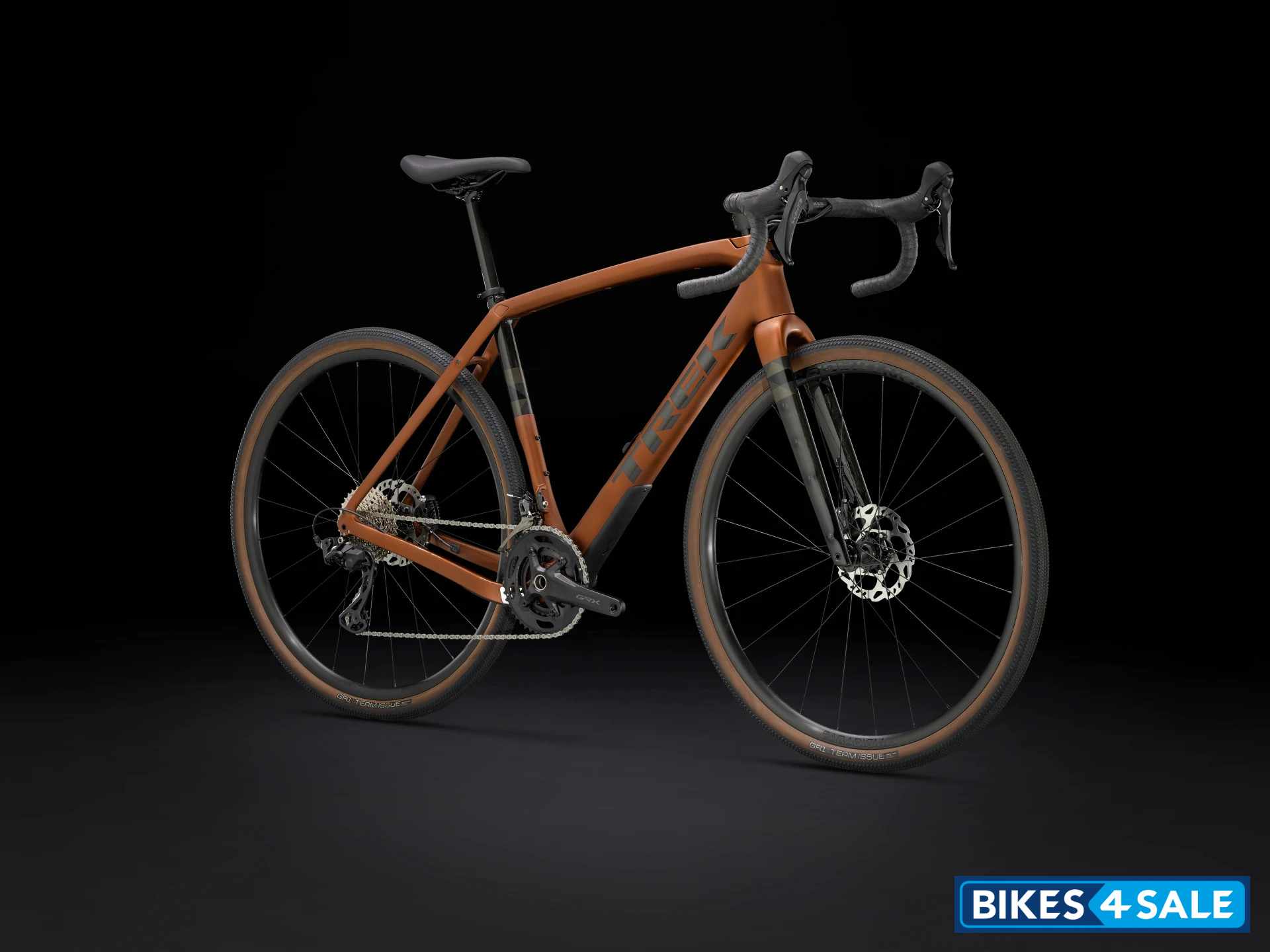

Picture Gallery

Similar Bicycles

Ninety One Direwolf 29T Multispeed

Volt E Byk 700C Racing

Volt E Byk Foldable Edition

Hero Cycles Hero Sprint Compass

Ninety One Dark Knight 27.5 Multispeed

Decathlon Rockrider ST100

Technical Specifications

Vehicle Type	Bicycle
Stem	Size: 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Handlebar	Size: 49 Bontrager Elite Gravel, 38 cm width Size: 52 Bontrager Elite Gravel, 40 cm width Size: 54, 56 Bontrager Elite Gravel, 42 cm width Size: 58 Bontrager Elite Gravel, 44 cm width
Fork	Trek Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle
Seatpost	Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
Crankset	Size: 49 Shimano GRX RX610, 46/30, 165 mm length Size: 52 Shimano GRX RX610, 46/30, 170 mm length Size: 54, 56 Shimano GRX RX610, 46/30, 172.5 mm length Size: 58 Shimano GRX RX610, 46/30, 175 mm length
Chain	Shimano SLX M7100, 12-speed
Shifters	Shimano GRX RX610, 12-speed
Saddle	Size: 49, 52 Bontrager Verse Comp, steel rails, 155 mm width Size: 54, 56, 58 Bontrager Verse Comp, steel rails, 145 mm width
Derailleur : Front	Shimano GRX RX820, braze-on, down swing
Derailleur : Rear	Shimano GRX RX820, 36T max cog
Hub : Front	Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Hub : Rear	Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Cassette	Shimano 105 7100, 11-36, 12-speed
Chainrings	Max. chainring size - 1x: 46T, 2x: 50/37
Bottom Bracket	Praxis, T47 threaded, internal bearing

Chassis and Suspension
Frame	500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, dropper post compatible, 142x12 mm thru axle

Tyres
Wheels / Rim	Rim - Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Front Tyre	Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 mm
Rear Tyre	Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 mm
